At IBC 20-25 in Amsterdam, TVLogic was showing an upcoming 13.9″ Production Field Monitor, as well as their TVLogic F-10H 10.1″ HDR High Brightness Field Monitor.
13.9″ Production Field Monitor (SVM-130P)
The upcoming SVM-130P is a 13.9″ 1920 x 1080 field production monitor with a claimed brightness of 1500 nits.

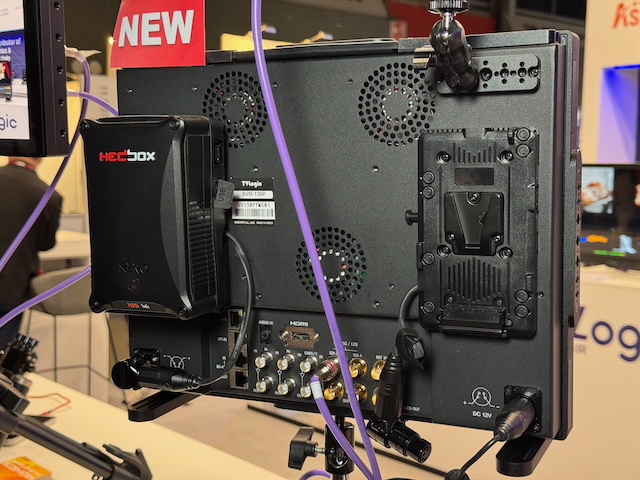

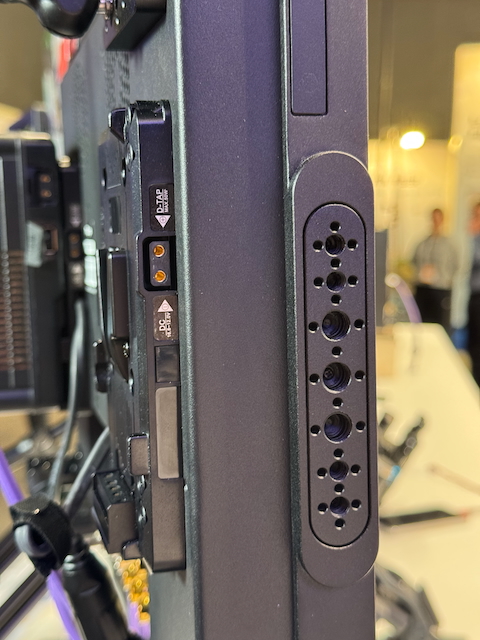

It has two V-mount battery plates on the back for powering, as well as mounting points on the sides and top for attaching accessories such as a wireless video receiver.

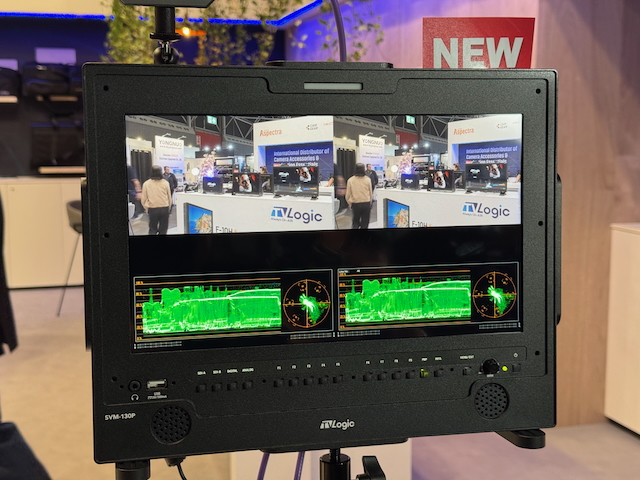

The monitor is capable of doing a two-up display with independent scopes.
TVLogic will also have an 18″ version of the monitor available.
The 13.9″ monitor will be around 3,500 Euros, and it should be available at the end of this year.
TVLogic F-10H 10.1″ HDR High Brightness Field Monitor ($2,992.50 USD)

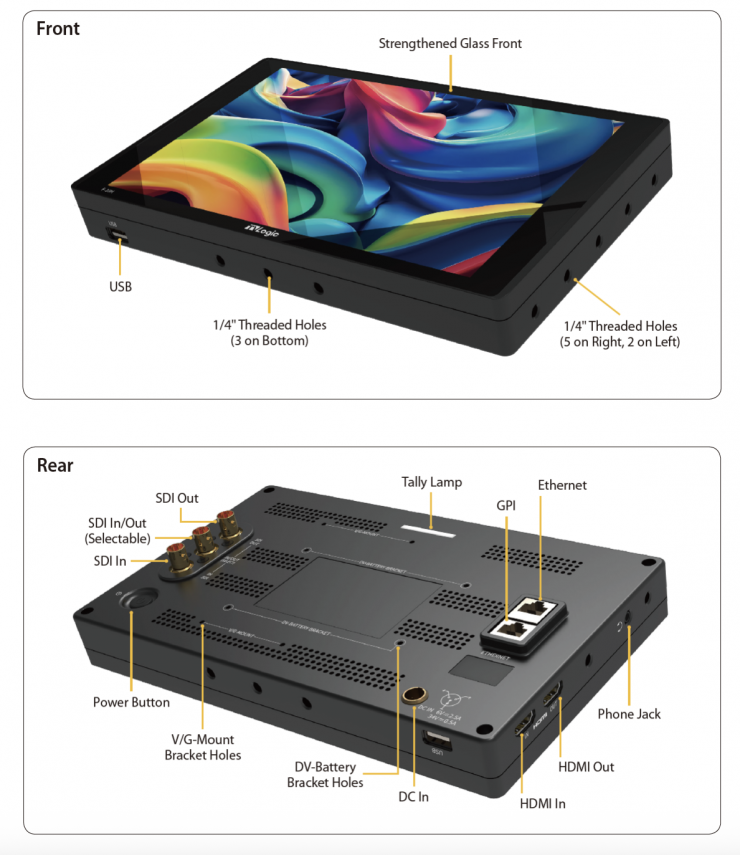

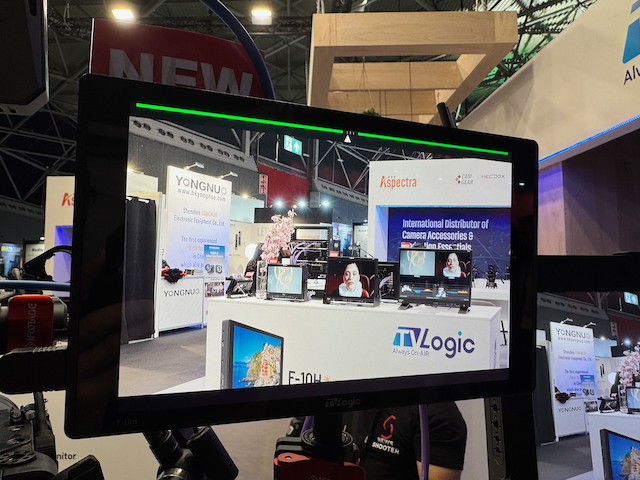

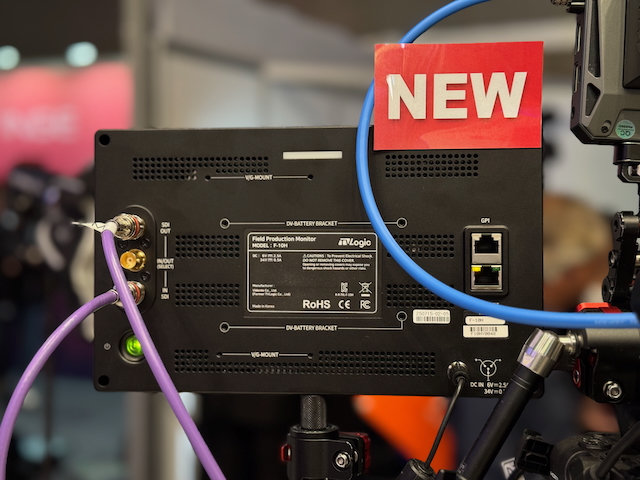

The F-10H is a 10″ 1920 x 1080 field monitor that features a 1400nit ultra-bright display and a strengthened glass front. It has a slim, lightweight aluminum body that offers portability without compromising durability. It features video assist tools such as 3D LUT import, HDR, ARRI metadata display, Horizontal Level Meter, and waveform monitoring.

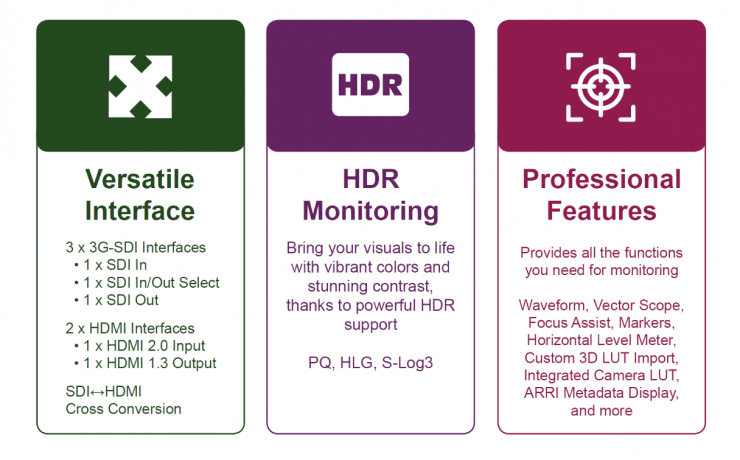

Key features
- 10”, Full HD Resolution (1920×1200)
- Max Luminance 1400nits
- DCI-P3 Coverage 95%
- Tempered Glass Treatment
- HDR (PQ / HLG / Slog3)
- Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)
- Custom 3D-LUT Import
- Sharpness + Peaking Boost
- ARRI Metadata Display
- Scan / Anamorphic Desqueeze / Zoom / Split Zoom
- 3x 3G SDI (1x 3G SDI Selectable I/O)
- HDMI 2.0 ↔ SDI Cross Conversion
- Luma(Y’) Zone Check (Zebra / Color)
- H/V Flip, Auto Flip
- Horizontal Meter
- Waveform / Vectorscope
- DC 12V ~ 34V
The TVLogic F-10H 10.1″ HDR High Brightness Field Monitor was first shown as a prototype back at NAB in April.
